- Place of Origin: China zhejiang taizhou jiaojiang hong home
- Brand Name: SunTac
- Model Number: CDS800
- Weight: 2500.000 kg

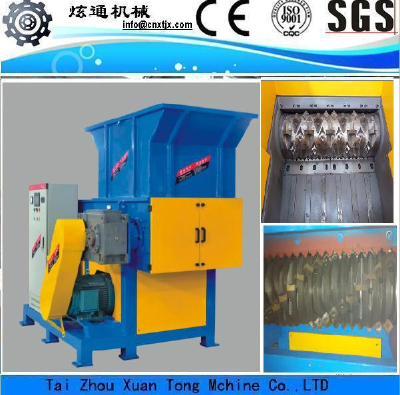

Which is combined with many years of production experience and the actual characteristics of the material, according to different materials of shearing force, power and other characteristics, developed different production, different models of shredding machine, the equipment material shear into about 20 mm, the size of the reduced by artificial cut again before crushing, disease 2 is equipped with hydraulic drive forced feeding device, and tore up the knife design into four directions can be used, and adopts imported PLC to one-time completed, to ensure the safe operation of the system.
Features:
1. The rotor knives and knife on the removable, facilitate cleaning, maintenance, maintenance;
2. The uniaxial every moving knife shredding machine has four cutting edges, wear can rotate 90 ° after continue to use;
3. The uniaxial shredding machine spindle driven by gear reducer, smooth operation, low noise, large torque;
4. Uniaxial shredding machine adopts PLC program control system, can automatically positive &negative, make the machine more safety and reliable operation;
5. Single shaft of shredding machine box body welding, after welding tempering treatment, eliminate the welding stress;
In shredded motor cutter installation position 6. Single axis machining center, precision machining, to ensure that every the clearance between the constant dao and the knife is the same;
7. Uniaxial shredded motor cutter holder adopts the embedded method with high strength bolt connection on the knife shaft, which can effectively prevent welding phenomenon after long-term vibration generated off the edge of the sword;
公司The company | 台州市昌达（炫通）机械有限公司Taizhou Changda Machine Factory |
型号/Model | CDS800 |
旋转刀片Rotating knife | 39（把/pcs） |
固定刀片Fixed knife | 0（把/pcs） |
筛网孔径Screen aperture | 12-22（mm） |
有效口径Valid caliber | 960*835（mm） |
破碎能力Crushing output | 450-750（kg/h） |
配套动力Driving power | 30（Kw） |
外形尺寸Out line demension | 2140*1435*2160（mm） |
整机重量Machine weight | 2500（kg） |
整机价格The machine price（不含税） | 88000（RMB） |
- Place of Origin: China zhejiang taizhou jiaojiang hong home
- Brand Name: SunTac
- Model Number: CDS800
- Weight: 2500.000 kg
Which is combined with many years of production experience and the actual characteristics of the material, according to different materials of shearing force, power and other characteristics, developed different production, different models of shredding machine, the equipment material shear into about 20 mm, the size of the reduced by artificial cut again before crushing, disease 2 is equipped with hydraulic drive forced feeding device, and tore up the knife design into four directions can be used, and adopts imported PLC to one-time completed, to ensure the safe operation of the system.
Features:
1. The rotor knives and knife on the removable, facilitate cleaning, maintenance, maintenance;
2. The uniaxial every moving knife shredding machine has four cutting edges, wear can rotate 90 ° after continue to use;
3. The uniaxial shredding machine spindle driven by gear reducer, smooth operation, low noise, large torque;
4. Uniaxial shredding machine adopts PLC program control system, can automatically positive &negative, make the machine more safety and reliable operation;
5. Single shaft of shredding machine box body welding, after welding tempering treatment, eliminate the welding stress;
In shredded motor cutter installation position 6. Single axis machining center, precision machining, to ensure that every the clearance between the constant dao and the knife is the same;
7. Uniaxial shredded motor cutter holder adopts the embedded method with high strength bolt connection on the knife shaft, which can effectively prevent welding phenomenon after long-term vibration generated off the edge of the sword;
