- Place of Origin: China zhejiang taizhou jiaojiang hong home
- Brand Name: SunTac
- Model Number: GTP1200/600
- Weight: 5000.000 kg

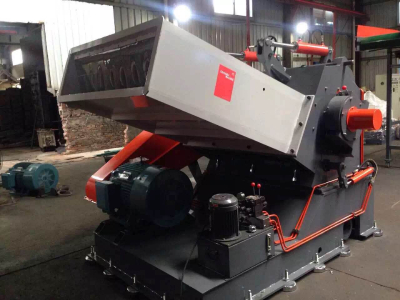

GTP series tray special crusher
Applications:
GTP series special crusher for the tray, mainly for similar materials pallet, pipe, plastic doors and windows and other wide format thickness of small plastic products, we research and develop the special models. Using a special spindle, unique feeding hopper type, it is easy to feed to the tray and the introduction of wide profiles. Reduce the recycling process, save energy, reduce labor intensity, reduce costs, improve the recycling efficiency.
参数parameter | GTP1000 | GTP1200 | GTP1400 |
外形尺寸L/W/H（mm) DimensionL/W/H（mm) | 2300X1950X1780 | 2300X2150X1780 | 2300X2350X1780 |
入料口尺寸mm Infeed opening（mm) | 340X1000 | 340X1200 | 340X1400 |
回转直径 Rotor diameter(mm) | φ600 | φ600 | φ600 |
转子长度 | 1000 | 1200 | 1400 |
筛网孔径 | φ12 | φ12 | φ12 |
定刀数 | 4 | 4 | 4 |
动刀数 | 2x5or2X7 | 2x5or2X7 | 2x5or2X7 |
液压功率 | 1.5KW | 1.5KW | 1.5KW |
电机功率 | 37 | 45 | 55 |
可选配功率 | 45 | 55 | 75 |
整机重量 | 4500 | 5500 | 6500 |
- Place of Origin: China zhejiang taizhou jiaojiang hong home
- Brand Name: SunTac
- Model Number: GTP1200/600
- Weight: 5000.000 kg
公司The company | 台州市昌达（炫通）机械有限公司Taizhou Changda Machine Factory |
型号/Model | GTP1200/600 |
旋转刀片Rotating knife | 2*5or2*7（把/pcs） |
固定刀片Fixed knife | 4（把/pcs） |
筛网孔径Screen aperture | 12（mm） |
有效口径Valid caliber | 340*1200（mm） |
破碎能力Crushing output | 700-850（kg/h） |
配套动力Driving power | 45/55（Kw） |
外形尺寸Out line demension | 2300*2150*1780（mm） |
整机重量Machine weight | 5000（kg） |
整机价格The machine price（不含税） | 110000（RMB） |
